Description

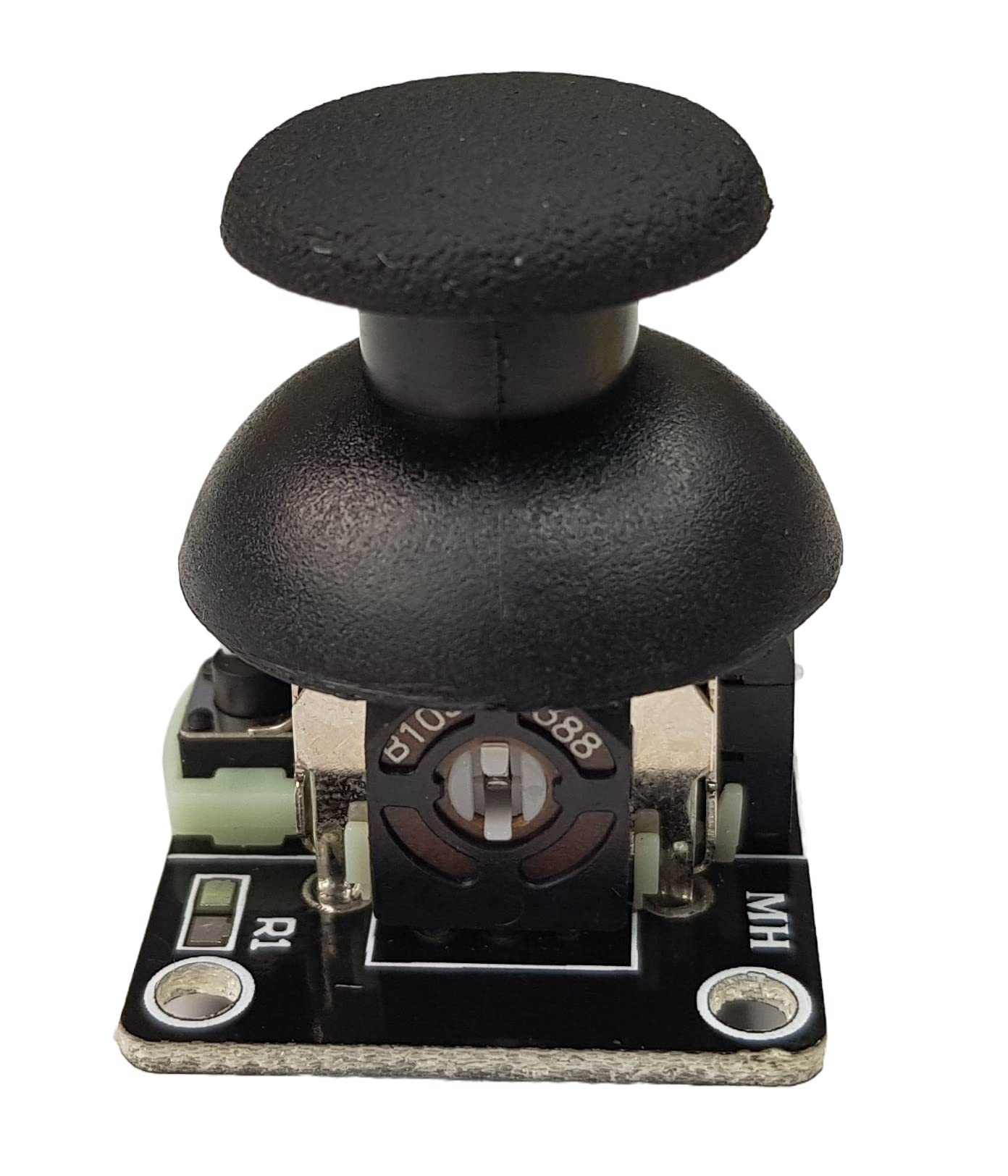

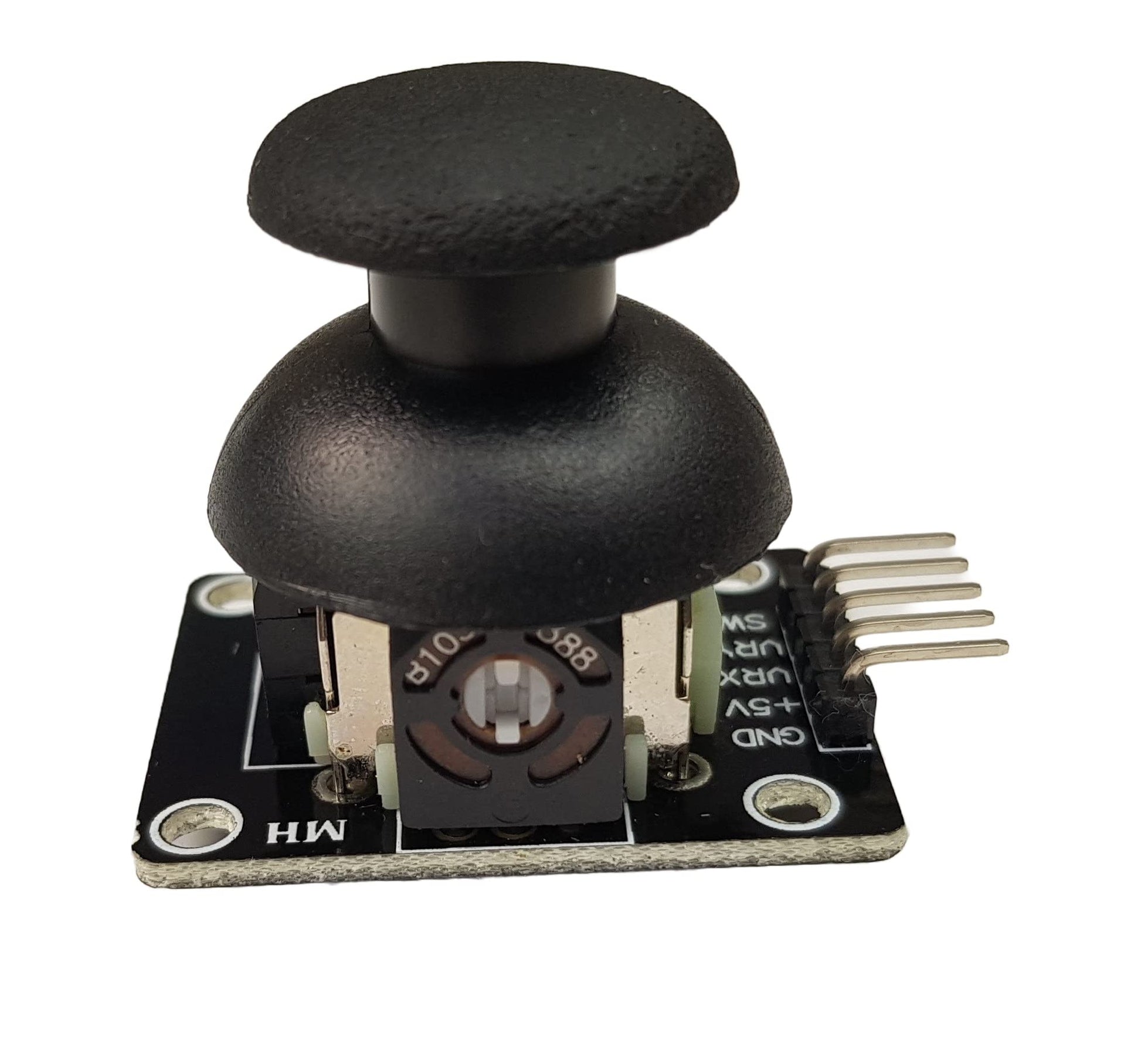

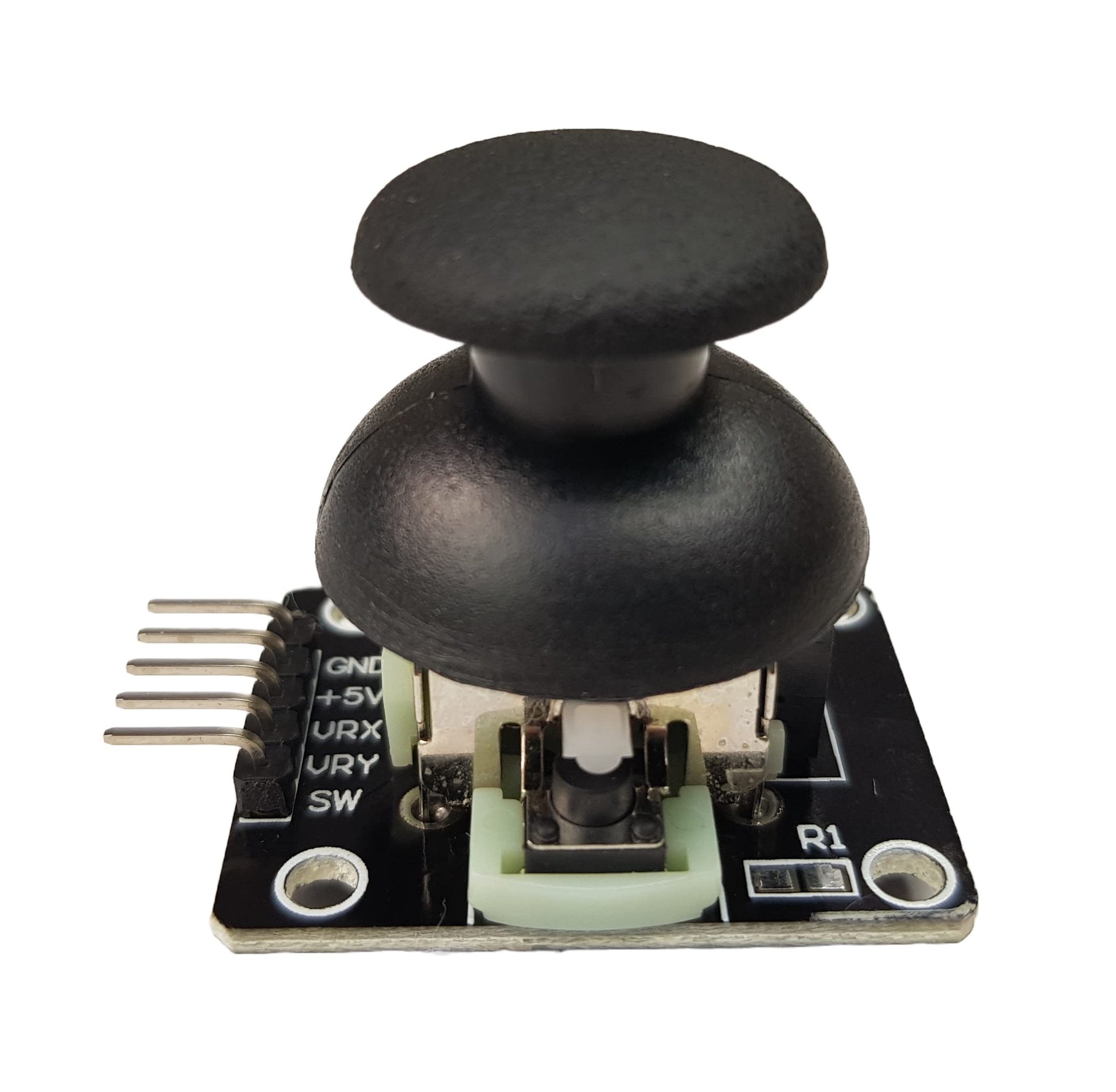

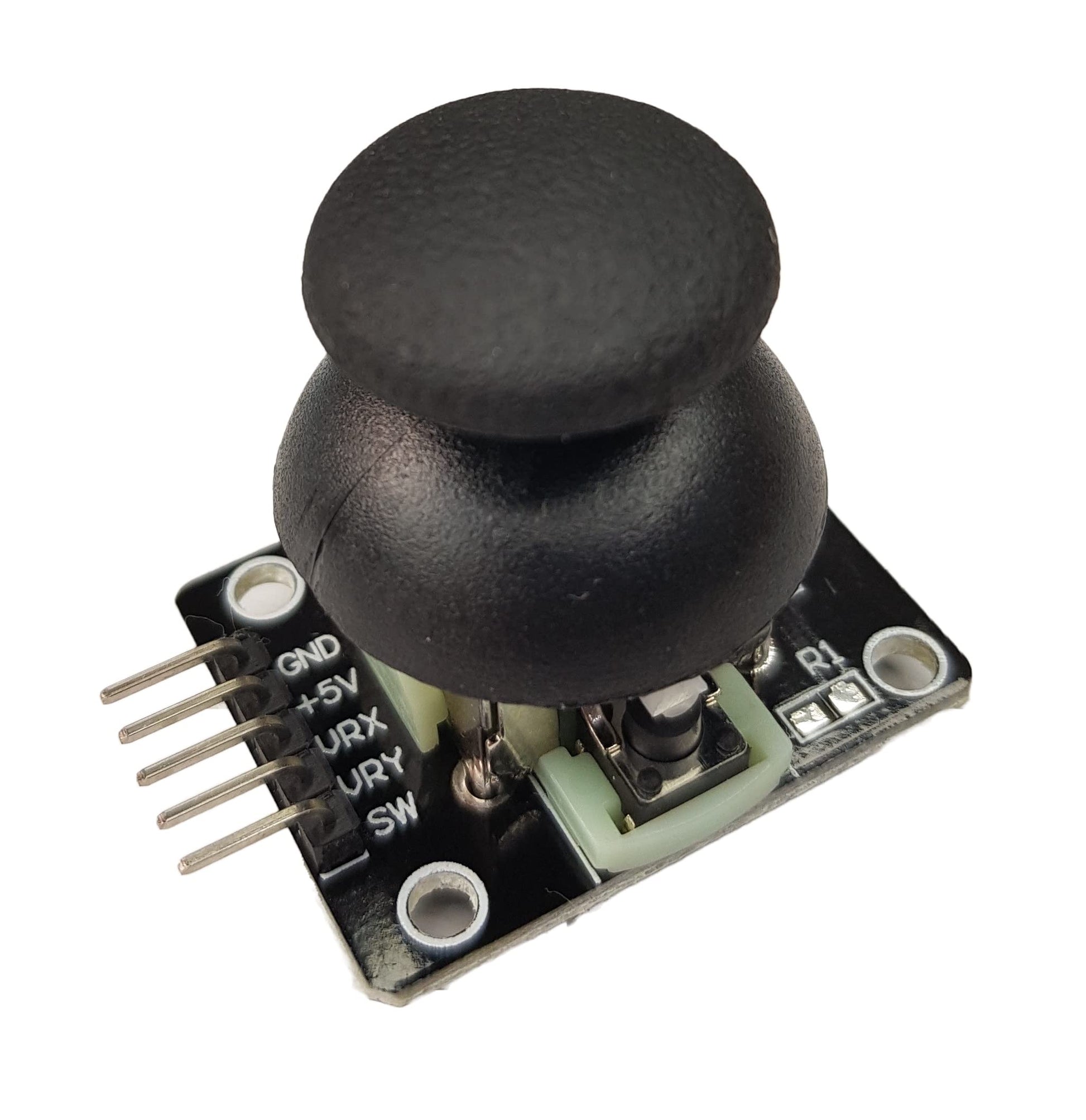

The DIYables Joystick is a versatile input device designed for hobbyists and developers. Ideal for projects involving Arduino, ESP32, ESP8266, Raspberry Pi, and MicroPython, this joystick provides an intuitive way to control various applications, making it perfect for robotics, gaming, and prototyping.

This joystick features four pieces, each equipped with dual analog outputs that precisely represent its position in the XY-axis coordinate system. Additionally, it includes a digital output that indicates the pressing state of the thumb, thanks to a built-in pull-up resistor. The DIYables Joystick is user-friendly and compatible with both 5V and 3.3V microcontrollers, ensuring a wide range of functionality across different platforms. The design is compact and robust, making it suitable for various projects where space and durability are essential.

Key Features:

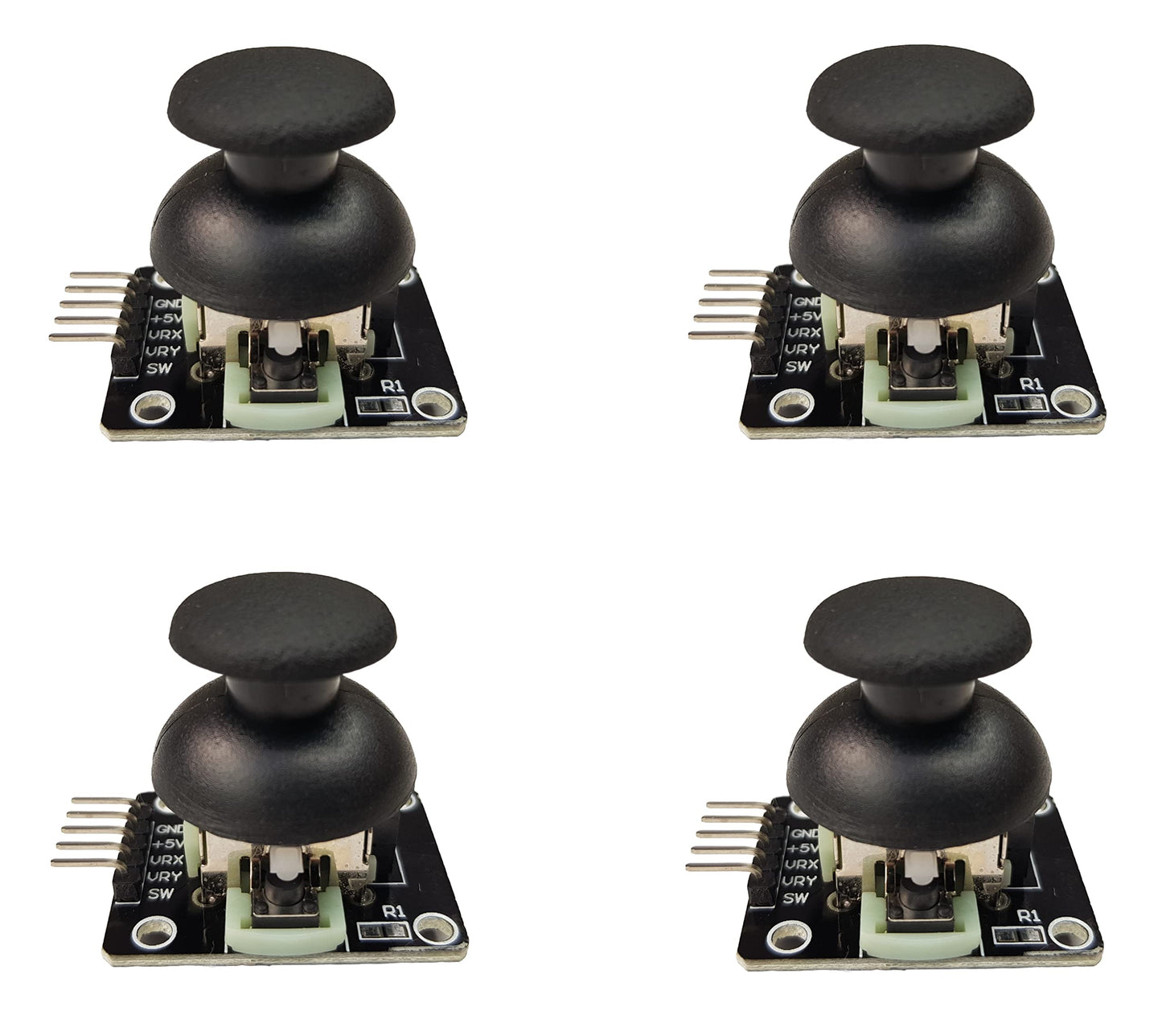

  • Includes 4 joysticks for multiple input capabilities.
  • Two analog outputs for accurate XY-axis positioning.
  • Digital output for thumb pressing state detection.
  • Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, and MicroPython.
  • Tutorials available to assist with setup and integration.
  • Requires 11 dB attenuation on ESP32 for voltage reference handling.
  • Voltage on the "+5V" pin must match ADC voltage reference for optimal performance.

The DIYables Joystick is a valuable addition for electronics enthusiasts, educators, and makers. Its straightforward integration with popular microcontrollers makes it an excellent choice for anyone looking to enhance their projects with precise control and feedback. Whether you're developing a complex robotic system or a simple game console, this joystick delivers reliable performance and versatility. Invest in the DIYables Joystick for a seamless and engaging user experience in your next project.

Frequently Asked Questions

  • Q: What is the model number of the joystick? A: The model number is DIY-JOYSTICK. This identifies the product specifically for compatibility and support.
  • Q: How many joysticks are included in the package? A: The package includes four joysticks. This allows for multiple projects or replacements.
  • Q: What type of outputs does the joystick have? A: The joystick has two analog outputs and one digital output. The analog outputs represent position in the XY-axis, while the digital output indicates the pressing state.
  • Q: What microcontrollers are compatible with the joystick? A: The joystick works with Arduino, ESP32, ESP8266, and Raspberry Pi. It is also compatible with any microcontroller that operates at five volts or three point three volts.
  • Q: Is there a tutorial available for using the joystick? A: Yes, tutorials are provided for various platforms. You can search for DIYables Joystick tutorials for guidance.
  • Q: Do I need to configure anything for the ESP32? A: Yes, you need to configure the ADC with eleven decibels of attenuation. This setting is necessary to handle the voltage reference range.
  • Q: What is the color of the joystick? A: The joystick is black. This color provides a classic look suitable for various projects.
  • Q: How do I connect the joystick to my microcontroller? A: Connect the joystick's output pins to the appropriate analog and digital inputs on your microcontroller. Ensure the power pin matches the voltage requirements.
  • Q: Can I use the joystick for gaming applications? A: Yes, the joystick can be used for gaming applications. It is particularly suitable for DIY gaming projects with microcontrollers.
  • Q: What should I do if I encounter issues with the joystick? A: If you encounter issues, check your connections and ensure the voltage levels are correct. Refer to the provided tutorials for troubleshooting steps.
  • Q: What is the recommended voltage for the joystick? A: The recommended voltage is five volts or three point three volts. Ensure that the voltage applied matches the ADC reference.
  • Q: Is the joystick suitable for beginners? A: Yes, the joystick is suitable for beginners. The included tutorials make it easy to understand and use.
  • Q: How do I keep the joystick in good condition? A: To keep the joystick in good condition, avoid exposing it to moisture and ensure proper handling during use. Store it in a dry place.
  • Q: Can I use this joystick for educational purposes? A: Yes, this joystick is ideal for educational purposes. It's great for learning about analog and digital inputs in electronics.
  • Q: What if the joystick arrives damaged? A: If the joystick arrives damaged, contact the seller for a replacement or refund. Ensure to provide photos of the damage for support.
